Prismatic springs, COPPER filling (0.5 L) for the HPT high-tower still! Prismatic springs, COPPER filling (0.5 L) for the HPT high-tower still!

Reference: miedz-0.5

Brand: Hurtownia, Sklep Padew.pl

PRISMATIC SPRINGS 0.5L COPPER FILLING

(6)
Filling Springs: Professional bulk-fill material for columns. Used to maximize the heat exchange surface area between the vapor traveling from the still to the dephlegmator and the return stream. Application: Before first use and before adding new springs, they should be pickled in 3% hydrogen peroxide with citric acid added, or washed in hot water with...
zł48.77
More PRISMATIC SPRINGS 0.5L COPPER FILLING
In stock
Prismatic springs with COPPER filling, 0.25 L, for a distiller Prismatic springs with COPPER filling, 0.25 L, for a distiller

Reference: miedz-0.25

Brand: Hurtownia, Sklep Padew.pl

PRISMATIC SPRINGS 0.25 L COPPER FILLING

(8)
Copper coils for a distiller. Professional packing material for columns. Used to maximize the heat exchange surface area between the vapor traveling from the flask to the dephlegmator and the return stream. Application: Before first use and before adding new coils, they should be pickled in 3% hydrogen peroxide with citric acid added, or washed in hot...
zł26.01
More PRISMATIC SPRINGS 0.25 L COPPER FILLING
In stock
Prismatic springs, COPPER-filled 1L distiller, prismatic Prismatic springs, COPPER-filled 1L distiller, prismatic

Reference: miedz-1L

Brand: Hurtownia, Sklep Padew.pl

PRISMATIC SPRINGS 1L COPPER FILLING

(7)
Professional packing material for columns. Used to maximize the heat exchange surface area between the vapor traveling from the pot to the dephlegmator and the return stream. Application: Before first use and before loading new springs, they should be pickled in 3% hydrogen peroxide with added citric acid, or washed in hot water with detergent and rinsed.
zł97.55
More PRISMATIC SPRINGS 1L COPPER FILLING
In stock
All best sellers
CLAMP 100 L STAINLESS STEEL DISTILLER ON A 76 PIPE, GAS-POWERED
  • CLAMP 100 L STAINLESS STEEL DISTILLER ON A 76 PIPE, GAS-POWERED
  • CLAMP 100 L STAINLESS STEEL DISTILLER ON A 76 PIPE, GAS-POWERED
  • CLAMP 100 L STAINLESS STEEL DISTILLER ON A 76 PIPE, GAS-POWERED

DISTILLER CLAMP 100 liters STAINLESS ON PIPE 76mm - for gas

DESTYLATOR-100L-R76-gaz
zł2,063.41
Tax excluded
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

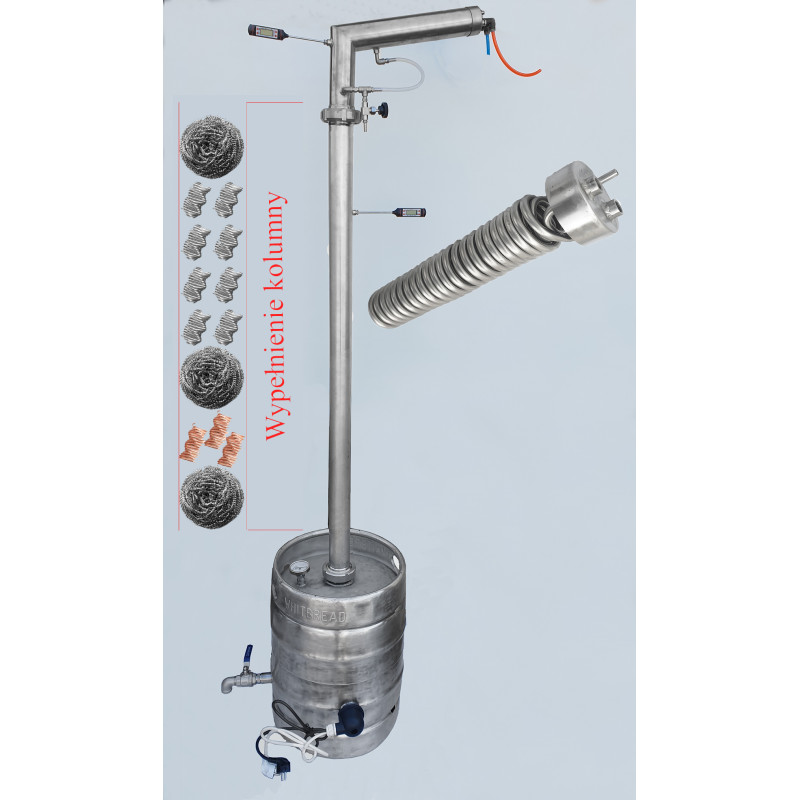

100-L STAINLESS STEEL DISTILLER ON A 76-MM PIPE

Aabratek-type gas distiller mounted on a 76 mm 304-grade stainless steel pipe, TIG-welded, and immersion-etched. Set includes a 100-liter tank.

Distiller with a CLAMP connector.

With this type of distiller, you obtain high-quality 96% spirit on the first run. The unit allows you to achieve a distillate of the highest purity.

It is ideal for distilling essential oils, water, and high-proof solutions.

The total height of the set, including the tank, is approximately 230 cm.

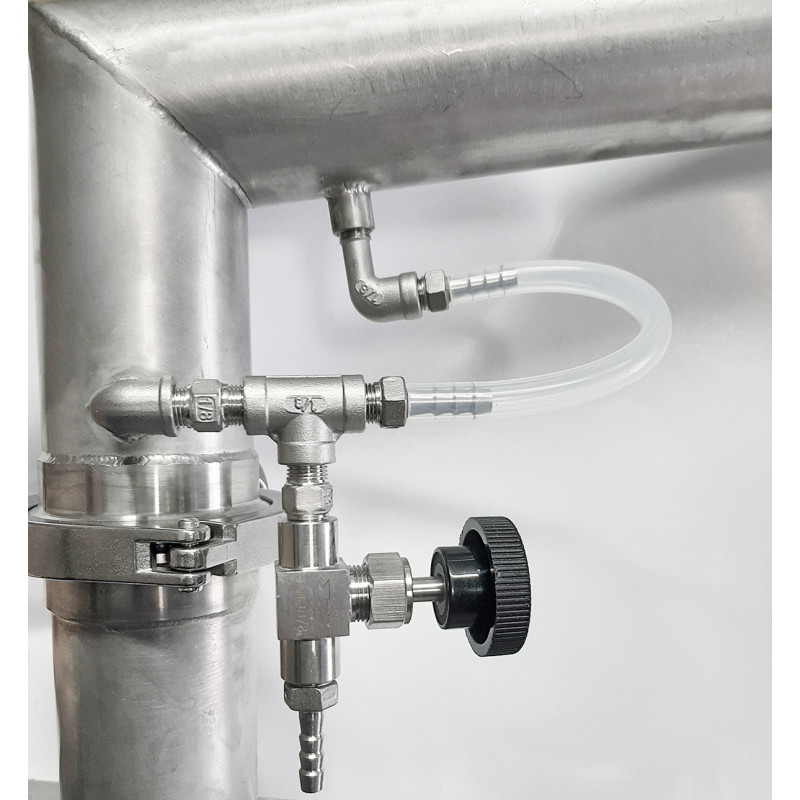

The head, complete with a welded condenser, is located at the outlet. The head is welded at an angle of approximately 105 degrees. A cap with a cooling coil, a vent, and two water inlets is attached to the head. The cooling coil is made of 6 meters of 8-diameter tubing.

The rectification column is 120 cm tall and made of 76 mm 304-grade stainless steel tubing. The column is packed with stainless steel and copper springs. At the bottom of the column, a separator is used to hold the packing in place. The stainless steel and copper coils are also separated by a separator to prevent them from mixing. A 1/8-inch port for a thermometer is welded 20 cm from the top of the column.

Upon receipt, the kit should be thoroughly rinsed with warm water.

The kit includes: a tank, a column with a port for a thermometer (without packing), a head, and a cap with a double coil.

We offer distillers with various tube and tank diameters.

Not sure how to connect the distiller?

Example diagram of how to connect the distiller:

Jak podłaczyć destylator schemat
