DISTILLER CLAMP 50 liters STAINLESS ON PIPE 60mm - for gas

50-L STAINLESS STEEL ELECTRIC DISTILLER ON A 60 MM PIPE

Aabratek-type gas distiller mounted on a 60.3 mm 304-grade stainless steel pipe, TIG-welded and immersion-etched. Set includes a 50-liter tank.

Distiller with a CLAMP connector.

With this type of distiller, you obtain high-quality 96% spirit on the first run. The unit allows you to achieve a distillate of the highest purity.

It is ideal for distilling essential oils, water, and high-proof solutions.

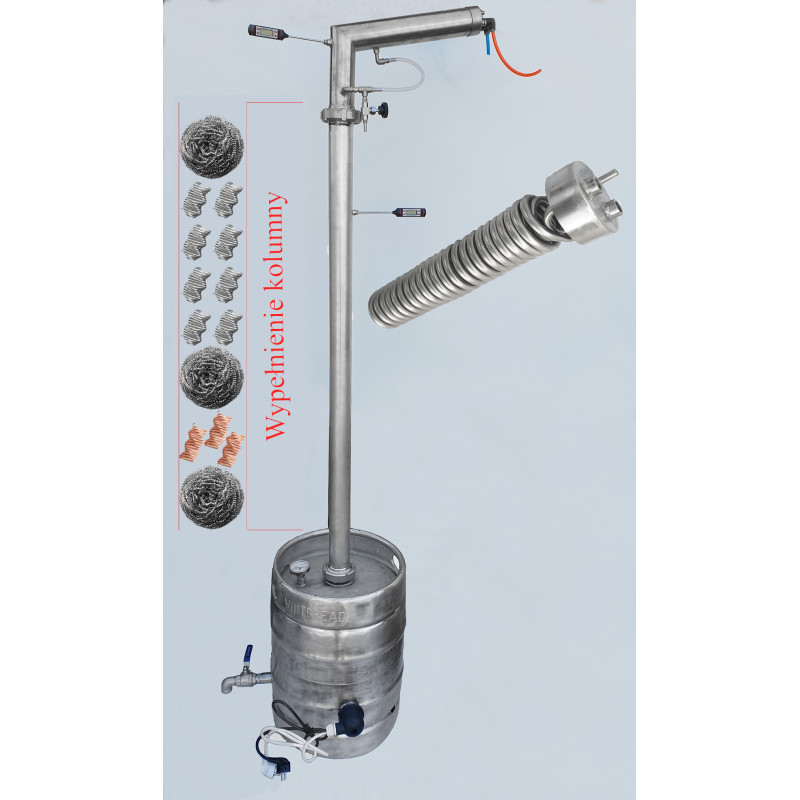

The total height of the set, including the tank, is approximately 200 cm.

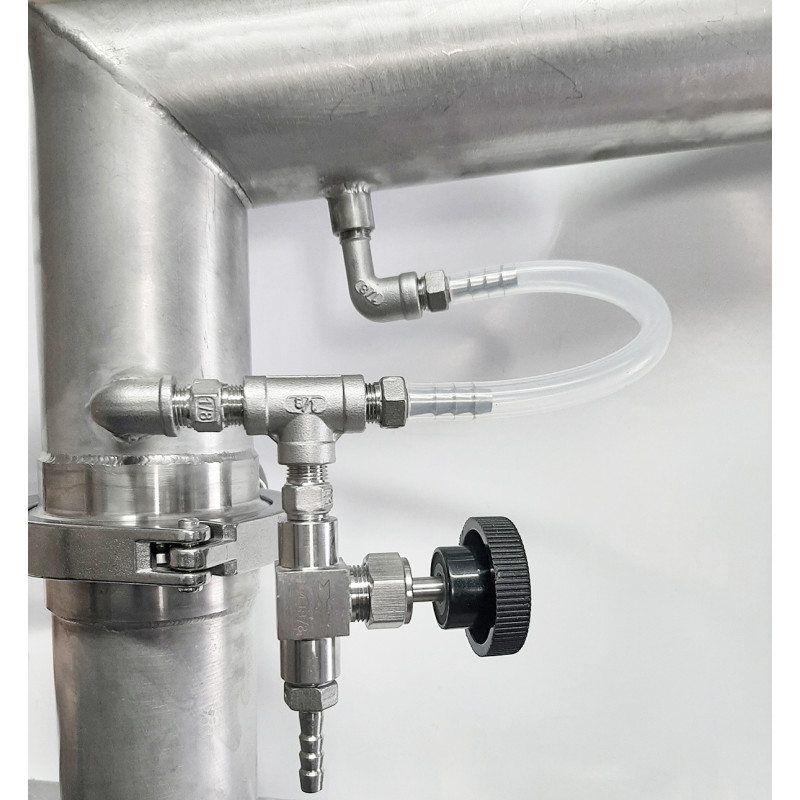

The head, complete with a welded condenser, is located at the outlet. The head is welded at an angle of approximately 105 degrees. A cap with a cooling coil, along with a vent and two water inlets, is attached to the head. The cooling coil is made of 6 meters of 8-diameter tubing.

The rectification column is 120 cm tall and made of 60.3 mm 304-grade stainless steel tubing. The column is packed with stainless steel and copper springs. At the bottom of the column, a separator is used to hold the packing in place. The stainless steel and copper springs are also separated by a separator to prevent them from mixing. A 1/8-inch port for a thermometer is welded 20 cm from the top of the column.

Upon receipt, the kit should be thoroughly rinsed with warm water.

The kit includes: a tank, a column with a port for a thermometer (without packing), a head, and a cap with a double coil.

We offer distillers with various tube and tank diameters.

Not sure how to connect the distiller?

Example diagram of how to connect a distiller:
