DIGITAL TEMPERATURE CONTROLLER -50 / + 110 ° C 230V, 30A

DIGITAL TEMPERATURE CONTROLLER -50 / + 110 ° C 230V, 30A




PANEL CONTROLLER DIGITAL TEMPERATURE -50 / + 110 ° C 230V with waterproof probe, probe 100 cm long. Probe diameter 4mm.



The controller is used for automatic temperature control in various devices, e.g. heaters.

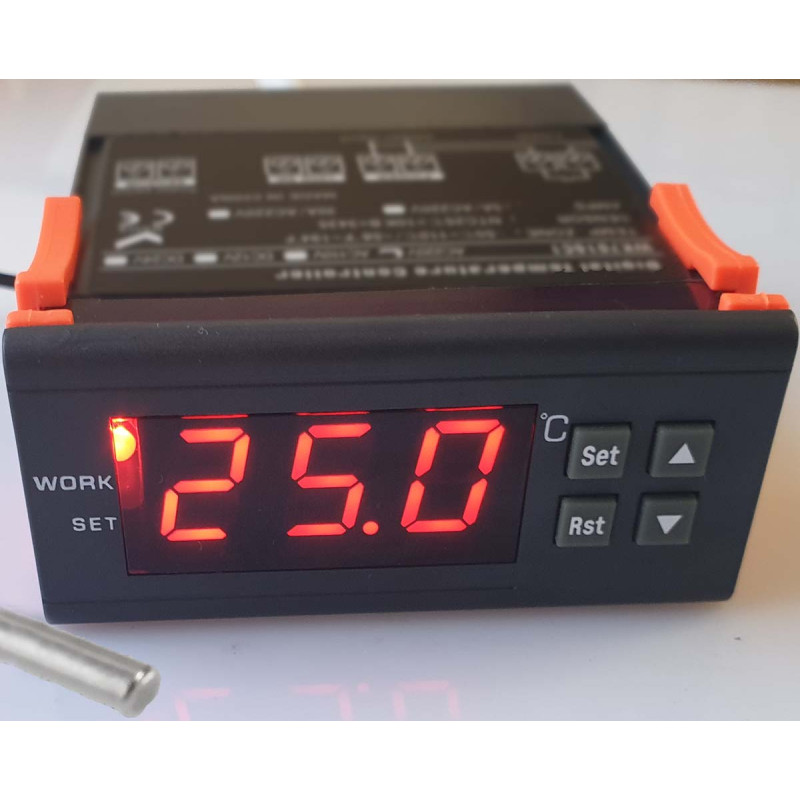

The big advantage of the regulator is very simple operation. We operate it with 3 buttons: Set, Up, Down + Reset button. Temperature resolution 0.1 ° C, displayed on the LED display.

The large regulator has cooling or heating functions. Temperature measurement -50 / + 110 ° C. Refresh rate 0.5 s.



Ambient temperature of the controller work -10 / + 60 ° C.



To set the controller, hold the "set" button for 3 seconds. and set the following parameters using the arrows and the "SET" button:

Symbol:

HC to H - Heating (C cooling)

D on 1 - Hysteresis

LS - at -50 - minimum temperature range

HS - for 110 - maximum temperature range

CA - for 1 Temperature calibration

PT - 0 - Temperature download cas (delay time)



 Supports 30A / 230V current

We also offer solenoid valves.



Device dimensions: 85 mm / 75 mm / 25 mm, weight 180 g.
