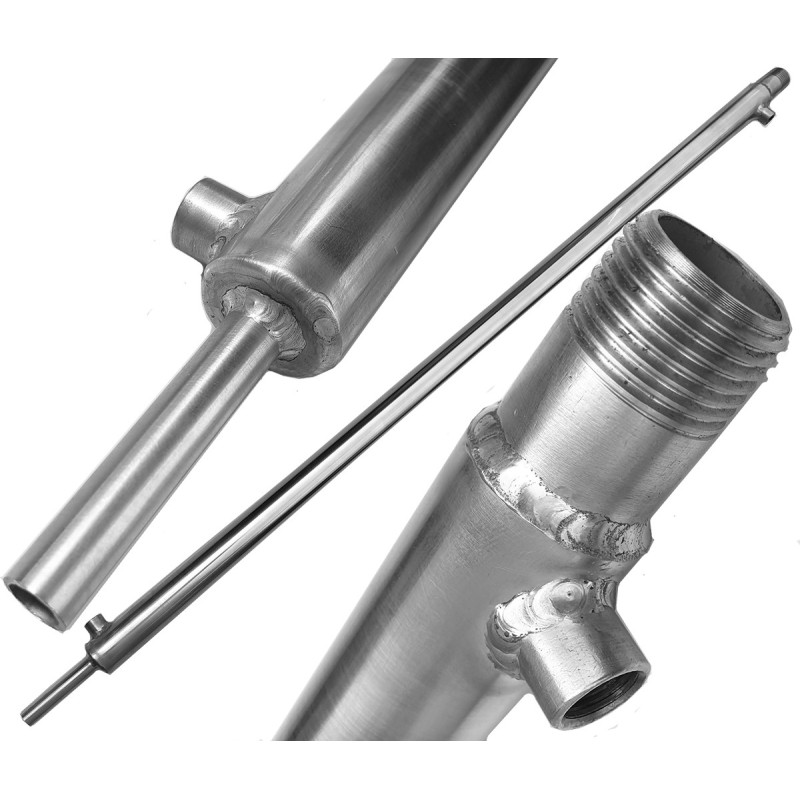

COOLER LIEBIGA OVM 1 inch - 34 mm

COOLER LIEBIGA OVM 1 inch - 34 mm

The total length of the radiator is approximately 95 cm

Radiator, water jacket made of 1 inch 34 mm tube

Inner tube, Fi 14 mm condenser

water outlet 1/8 inch, 10 mm

The coolers are best placed in the distiller head or approx. 20 cm from the top in the rectification column. The fumes in the head are regulated by a 1-inch valve. We have valves on our auctions. It is best to use a valve with full bore.

The radiator is designed to cool the distillate, it allows us to accurately measure the alcohol concentration in the distillate.
